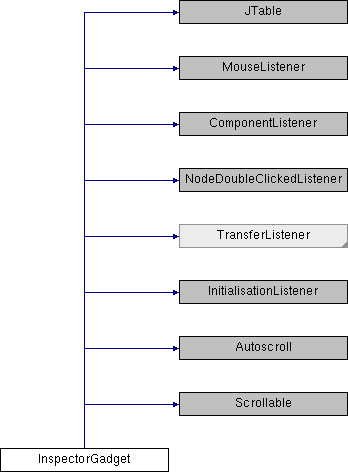

Inheritance diagram for InspectorGadget:

Data Structures
class	DragHandler

class	DropHandler

class	InspectorTreeModelListener

class	MatrixTableUI

class	MenuHandler

Public Member Functions
	InspectorGadget (TableModel model, MatrixTree tree)

InspectorNavigator	getNavigator ()

MatrixTree	getTree ()

void	autoscroll (Point pt)

Insets	getAutoscrollInsets ()

void	addTransferListener (TransferListener l)

void	removeTransferListener (TransferListener l)

NodePosition	getSelectionNode ()

NodePosition[]	getSelectionNodes ()

NodePosition	getTopMostSelection (NodePosition[] positions)

NodePosition	getBottomMostSelection (NodePosition[] positions)

NodePosition	getLeftMostSelection (NodePosition[] positions)

NodePosition	getRightMostSelection (NodePosition[] positions)

TreePath[]	getSelectionPaths ()

TreePath	getSelectionPath ()

Rectangle	getSelectionBounds (NodePosition[] positions)

NodePosition	getLastDraggableNode ()

void	populateInspector (TreePath path)

void	redrawInspector ()

void	mouseEntered (MouseEvent evt)

void	mouseExited (MouseEvent evt)

void	mouseReleased (MouseEvent evt)

void	mousePressed (MouseEvent evt)

void	mouseClicked (MouseEvent evt)

void	componentHidden (ComponentEvent e)

void	componentMoved (ComponentEvent e)

void	componentShown (ComponentEvent e)

void	componentResized (ComponentEvent e)

void	fireTransfer (int dragIndex, int dropIndex, MatrixTreeNode node, MatrixTreeNode dropParent)

void	nodeDoubleClicked (NodeDoubleClickedEvent e)

void	transferGestureRecognized (TransferEvent evt)

void	initialisationComplete (InitialisationEvent e)

boolean	mouseInsideCellComponent (Point point)

void	paintComponent (Graphics g)

Protected Member Functions
boolean	filtersAllowNode (MatrixTreeNode node)

DragHandler	getDragHandler ()

DropHandler	getDropHandler ()

MenuHandler	getMenuHandler ()

InspectorTreeModelListener	getInspectorTreeModelListener ()

Image	getGhostedNode (NodePosition position)

Image	getGhostedNode (NodePosition[] positions)

Image	getDragImageForPosition (NodePosition[] positions)

Component	getComponentForPosition (NodePosition position)

Protected Attributes
BufferedImage	dblBuffer = null

Detailed Description

The InspectorGadget class is the Explorer style table in the Matrix asset map.

Author: Nathan de Vries ndvri.nosp@m.es@s.nosp@m.quiz..nosp@m.net

Definition at line 50 of file InspectorGadget.java.

Constructor & Destructor Documentation

InspectorGadget	(	TableModel	model,
		MatrixTree	tree
	)

inline

Returns an InspectorGadget which is a table representation of the tree passed as a parameter.

Parameters

model	the table model to construct the table with.
tree	the tree that the table represents.

Definition at line 88 of file InspectorGadget.java.

Member Function Documentation

void addTransferListener ( TransferListener l )

inline

Adds a TransferListener to listen for transfer events

Parameters

l	the TransferListener to add

Definition at line 201 of file InspectorGadget.java.

void componentHidden ( ComponentEvent e )

inline

Invoked when the component has been made invisible

Parameters

e	a low-level event which indicates that a component moved, changed size, or changed visibility

Definition at line 574 of file InspectorGadget.java.

void componentMoved ( ComponentEvent e )

inline

Invoked when the component's position changes

Parameters

e	a low-level event which indicates that a component moved, changed size, or changed visibility

Definition at line 582 of file InspectorGadget.java.

void componentResized ( ComponentEvent e )

inline

Invoked when the component's position changes

Parameters

e	a low-level event which indicates that a component moved, changed size, or changed visibility

Definition at line 598 of file InspectorGadget.java.

void componentShown ( ComponentEvent e )

inline

Invoked when the component's position changes

Parameters

e	a low-level event which indicates that a component moved, changed size, or changed visibility

Definition at line 590 of file InspectorGadget.java.

boolean filtersAllowNode ( MatrixTreeNode node )

inlineprotected

Checks if the filter allows this node to be displayed.

Parameters

node	the MatrixTreeNode to check

Returns: TRUE if the filters don't block the node, FALSE otherwise.

Definition at line 764 of file InspectorGadget.java.

void fireTransfer	(	int	dragIndex,
		int	dropIndex,
		MatrixTreeNode	node,
		MatrixTreeNode	dropParent
	)

inline

Fires an event about the nodes that were dragged, and where they were dropped

Parameters

dragIndex	index of the node which was clicked to start the drag
dropIndex	index of the node which was dropped onto
node	the node that was dragged
dropParent	the parent of the node at dropIndex

Definition at line 611 of file InspectorGadget.java.

NodePosition getBottomMostSelection ( NodePosition[] positions )

inline

Returns the cell position of the bottom most selected node.

Returns: the cell position

Definition at line 281 of file InspectorGadget.java.

Component getComponentForPosition ( NodePosition position )

inlineprotected

Returns the renderable component for the specified position

Parameters

position the NodePosition to the wanted renderable component

Returns: the renderable component for the specified position

Definition at line 910 of file InspectorGadget.java.

DragHandler getDragHandler ( )

inlineprotected

Returns the drag handler that handles drag operations.

Returns: the drag handler

Definition at line 779 of file InspectorGadget.java.

Image getDragImageForPosition ( NodePosition[] positions )

inlineprotected

Returns a drag image for the specifed positions. If there is multiple positions, the drag image will reflect the cell layout offsets in the table

Parameters

positions the positions for the wanted drag image

Returns: the drag image that reflects the specfied positions

Definition at line 893 of file InspectorGadget.java.

DropHandler getDropHandler ( )

inlineprotected

Returns the Drop handler that handles Drop operations.

Returns: the drop handler

Definition at line 788 of file InspectorGadget.java.

Image getGhostedNode ( NodePosition position )

inlineprotected

Returns the Image for the component at the specified NodePosition

Parameters

position the NodePosition for the wanted component Image

Returns: the image representation of the component at the given NodePosition

See Also: getGhostedNode(NodePosition[])

Definition at line 808 of file InspectorGadget.java.

Image getGhostedNode ( NodePosition[] positions )

inlineprotected

Returns a ghosted image for the specfied NodePosition

Parameters

positions the positions of the wanted ghosted node

Returns: the ghosted node of the specifed positions

See Also: getGhostedNode(NodePosition)

Definition at line 838 of file InspectorGadget.java.

NodePosition getLastDraggableNode ( )

inline

Returns the NodePosition of the last !null cell in the table

Returns: the NodePosition

Definition at line 374 of file InspectorGadget.java.

NodePosition getLeftMostSelection ( NodePosition[] positions )

inline

Returns the cell position of the left most selected node.

Returns: the cell position

Definition at line 296 of file InspectorGadget.java.

InspectorNavigator getNavigator ( )

inline

Returns the InspectorNavigator which provides navigational tools.

Returns: the inspector navigator

Definition at line 161 of file InspectorGadget.java.

NodePosition getRightMostSelection ( NodePosition[] positions )

inline

Returns the cell position of the right most selected node.

Returns: the cell position

Definition at line 311 of file InspectorGadget.java.

Rectangle getSelectionBounds ( NodePosition[] positions )

inline

Returns the Rectangle that the selected nodes are drawn into.

Parameters

positions the NodePositions of each selected node

Returns: the Rectangle the selected nodes are drawn in

Definition at line 350 of file InspectorGadget.java.

NodePosition getSelectionNode ( )

inline

Returns the first node that is currently selected in table

Returns: the first node that is selected in the table, or null if there are no nodes currently selected

See Also: getSelectionNodes()

Definition at line 221 of file InspectorGadget.java.

NodePosition [] getSelectionNodes ( )

inline

Returns the nodes in the current selection.

Returns: the nodes in the current selection, or null if there are no nodes in the current selection

See Also: getSelectionNode()

Definition at line 238 of file InspectorGadget.java.

TreePath [] getSelectionPaths ( )

inline

Returns the paths of all selected values.

Returns: an array of TreePath objects indicating the selected nodes, or null if nothing is currently selected

Definition at line 327 of file InspectorGadget.java.

NodePosition getTopMostSelection ( NodePosition[] positions )

inline

Returns the cell position of the top most selected node.

Returns: the cell position

Definition at line 266 of file InspectorGadget.java.

MatrixTree getTree ( )

inline

Returns the MatrixTree that this table is linked to.

Returns: the tree.

Definition at line 170 of file InspectorGadget.java.

void initialisationComplete ( InitialisationEvent e )

inline

InitialisationListener event that is fired when the tree has completely finished loading

Parameters

e	the InitialisationEvent

See Also: InitialisationListener::initialisationComplete(InitialisationEvent)

Definition at line 666 of file InspectorGadget.java.

void mouseClicked ( MouseEvent evt )

inline

Invoked when the mouse button has been clicked (pressed and released) on a component

Parameters

evt	an event which indicates that a mouse action occurred in a component

Definition at line 520 of file InspectorGadget.java.

void mouseEntered ( MouseEvent evt )

inline

Invoked when the mouse enters a component

Parameters

evt	an event which indicates that a mouse action occurred in a component

Definition at line 487 of file InspectorGadget.java.

void mouseExited ( MouseEvent evt )

inline

Invoked when the mouse exits a component

Parameters

evt	an event which indicates that a mouse action occurred in a component

Definition at line 495 of file InspectorGadget.java.

boolean mouseInsideCellComponent ( Point point )

inline

Checks whether the location specified by point is within the bounds of a cell's label or icon (JLabel)

Parameters

point the point to check for

Returns: TRUE if the point is within a component; FALSE if the point isn't within a component

Definition at line 680 of file InspectorGadget.java.

void mousePressed ( MouseEvent evt )

inline

Invoked when a mouse button has been pressed on a component

Parameters

evt	an event which indicates that a mouse action occurred in a component

Definition at line 511 of file InspectorGadget.java.

void mouseReleased ( MouseEvent evt )

inline

Invoked when a mouse button has been released on a component

Parameters

evt	an event which indicates that a mouse action occurred in a component

Definition at line 503 of file InspectorGadget.java.

void nodeDoubleClicked ( NodeDoubleClickedEvent e )

inline

NodeDoubleClickedListener event that is fired when a node in a tree is double clicked

Parameters

e	the CueEvent

See Also: NodeDoubleClickedListener::nodeDoubleClicked(NodeDoubleClickedEvent)

Definition at line 639 of file InspectorGadget.java.

void paintComponent ( Graphics g )

inline

Overrides the paintComponent() method in JTable to perform double buffering operations

Parameters

g	the graphics set to paint to.

Definition at line 736 of file InspectorGadget.java.

void populateInspector ( TreePath path )

inline

Fills the table with all the nodes in one level of a TreePath

Parameters

path	the path of the nodes to display in the table

Definition at line 387 of file InspectorGadget.java.

void redrawInspector ( )

inline

Strips the nodes from a table and recreates the model according to the number of columns, usually after the table is resized

Definition at line 433 of file InspectorGadget.java.

void removeTransferListener ( TransferListener l )

inline

Removes a TransferListener

Parameters

l	the TransferListener to remove

Definition at line 210 of file InspectorGadget.java.

void transferGestureRecognized ( TransferEvent evt )

inline

TransferListener event that is fired when a valid node (or nodes) is dropped in an InspectorGadget component

Parameters

e	the TransferEvent

See Also: TransferListener::transferGestureRecognized(TransferEvent)

Implements TransferListener.

Definition at line 652 of file InspectorGadget.java.

The documentation for this class was generated from the following file:

/Users/webmaster/Desktop/squiz_matrix/core/lib/asset_map/java/src/net/squiz/matrix/inspector/InspectorGadget.java

Data Structures

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
